1. Rate: 25G; Connector: Duplex LC
2. Max. power consumption 2W
3. Maximum link length: 10km on SMF
4. C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and APD receiver
5. SFP28 MSA Compliant

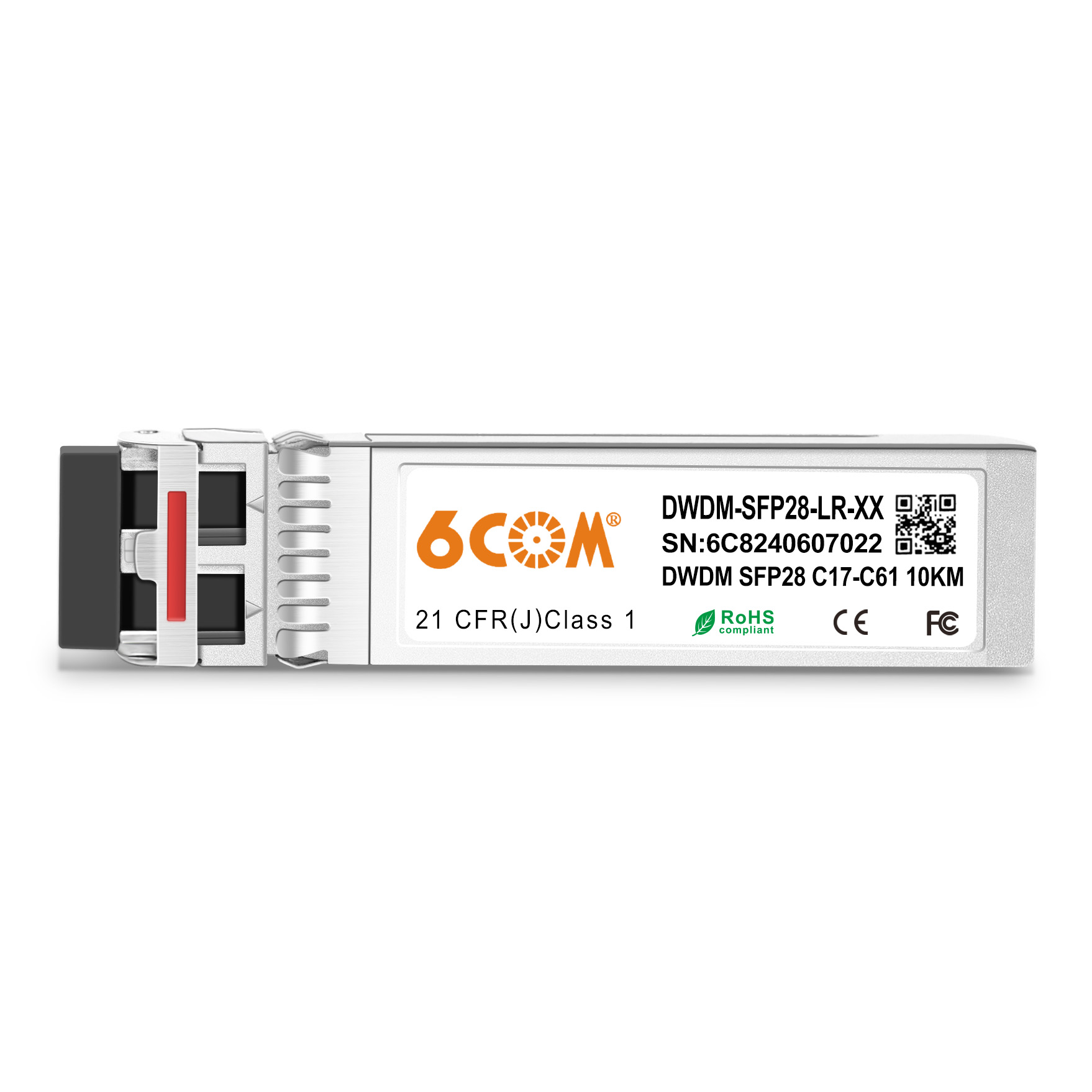

DWDM-SFP28-LR-XX 25G DWDM SFP28 100GHz C17~C61 10km Optical Transceiver Module
| Part Number | DWDM-SFP28-LR-XX | Vendor Name | 6COM |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | C17~C61 | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML DWDM | Receiver Type | PIN |
| TX Power | -2~6dBm | Receiver Sensitivity | <-12dBm |
| Power Consumption | 2W | Extinction Ratio | 4dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Power Budget | 10dB | FEC Function | Not Supported |
| Protocols | MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
6COM: Ensuring Superior Quality and Fast Delivery with Our Exclusive Part Tracking and Serialization Process
OEM Code Testing Lab Testing Quality Control Delivery Excellence
Every product is meticulously Our laboratory boasts state-of-the-art Every product has undergone Adequate stock, efficient overseas warehouses
custom-coded to ensure compatibility testing equipment ensuring peak performance a full quality control process and fast shipping ensure timely delivery
with all features and unwavering reliability for every product
At 6COM, we test and control the quality of our products. Each product is tested in our facilities, which simulate real-world conditions. We provide test reports for every product. With our sufficient stock, overseas warehouses and efficient shipping, we ensure fast delivery. Contact us to access our comprehensive test bed, which includes compatibility checks with modules from all major switch brands.
CompatibilityTest for DWDM-SFP28-LR-XX
