1. 5.0dB low typical noise figure
2. 1dB high typical flatness
3. Fully cover the entire C-Band and carry 40 or 80 channels.

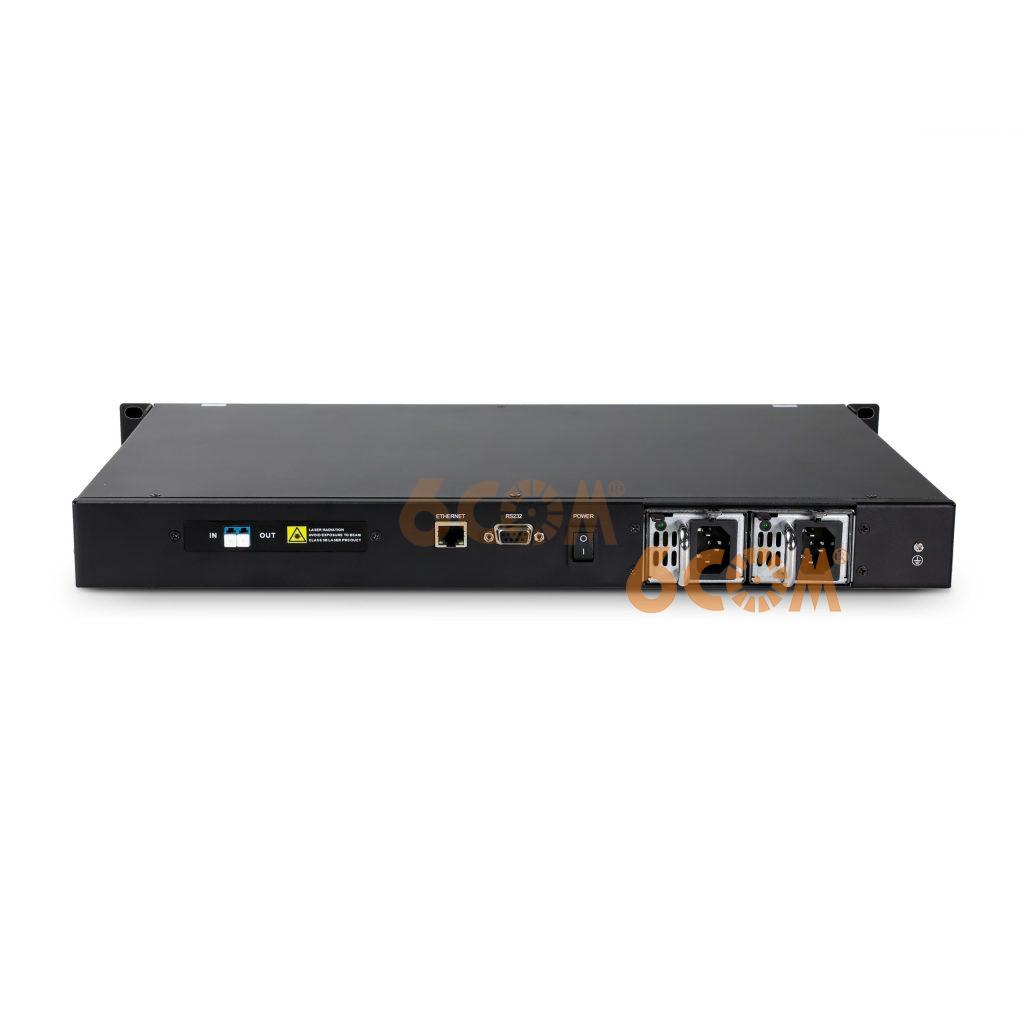

4. Redundant hot-swappable power module that can plug in 110/220VAC and 48VDC.
5. Perfect network interface that includes standard RJ45 and RS232 industrial standard interfaces.
6. Provide upper computer software for querying and setting up optical amplifier equipment, which can be accessed through an Ethernet network or serial port.

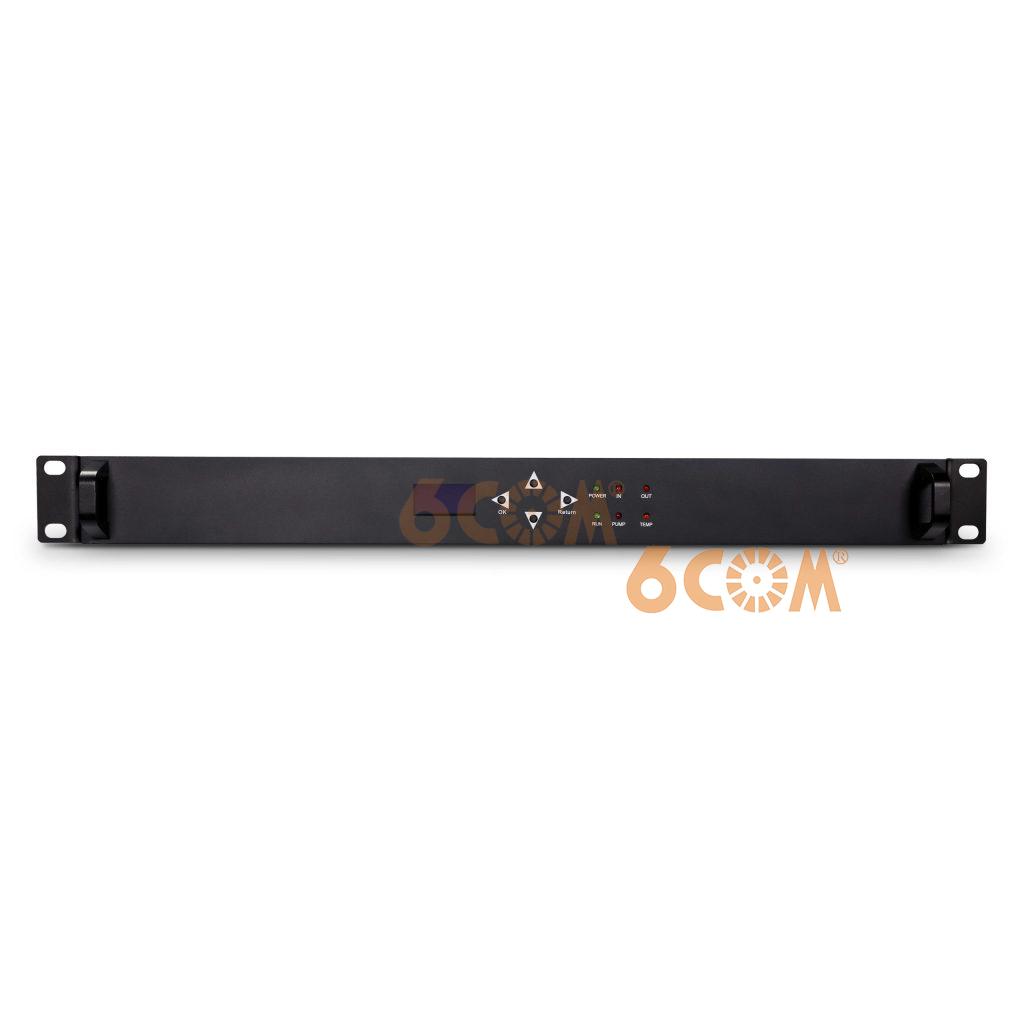

EDFA-PA-G2016 DWDM EDFA Card, PA G20/16dB, Gain 20dB, Max Output 16dB, LC/UPC, Dual Power,1U Rack
| Wavelength | 1527.8nm~1565.6nm | Input Power | -15~5dBm |
| Output Power | -5~20dBm | Noise figure | 6.0dB |
| Input/output Isolation | 30dB | Output Pump leakage | -30dB |
| Input/output return loss | 45dB | polarization dependent loss | 0.5dB |
| Polarization mode dispersion | 0.5ps | Operating Temperature | -5~55℃ |
| Return Loss | ≥45dB | Directivity | ≥45dB |
| power consumption | 30W | Dimension(W x L x H) | 482.6x245x43.6mm |
CompatibilityTest for 6C-1U-EDFA-PAG2016
Reliable manufacturer and seller of optical network products
What Can 6COM Bring to You
Industry-leading after-sales processing capabilities
6COM has been in this business for 12 years. We have rich experience in dealing with various problems, you can rest assured to buy products at 6com without worrying about after-sales problems.
The most competitive purchase cost in the industry
6COM's excellent production management model makes the module price at the bottom of the industry in the market. You can get the best quality products at budget.
Various swtiches for compatibility testing
Since 2010, 6com has purchased more than 140+ network switches, covering popular equipment of 10G/40G/100G brands.
Rigorous performance testing
Eye diagram test, waveform test, bit error test and other tests ensure the stability of the module
