Choosing the right transceiver module is critical when building an efficient network infrastructure. In particular, 40G CFP and 40G QSFP+ transceiver modules have become the first choice in many network architectures due to their outstanding performance and wide applicability. Today, we will analyze these two modules in detail, looking at their unique features, different types, application scenarios, and their respective advantages and disadvantages.
What is a 40G QSFP+ Transceiver?

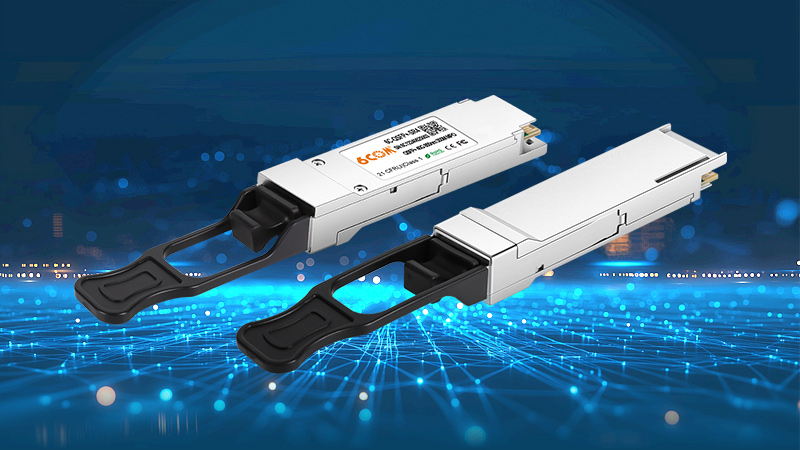

The 40G QSFP+ (Quad Channel Small Form Factor Pluggable Enhanced) transceiver is a high-speed network module that supports 40 Gbps data rates. One of its main highlights is its ability to be compatible with multiple types of fiber optic cables, including singlemode and multimode fiber. This flexibility allows for easy integration into existing network systems and a smooth transition from low to high speeds without the need for excessive hardware changes. In addition, the 40G module can also be connected to the 10/25GBASE-SR SFP28 module to upgrade the 10G-40G network to 25G-100G, without abandoning the deployed equipment and can be upgraded without changing the existing wiring.
In addition, the 40G QSFP+ transceiver supports a wide range of network protocols and adapts to different application environments. Its compact design and robust performance make it particularly popular in modern data centers and telecom networks, where bandwidth requirements and reliability are extremely high.
40G CFP Module Introduction
The 40G CFP (Type C Pluggable) module is a high performance optical transceiver designed for 40 Gbps data transmission. It complies with the CFP MSA (Pluggable Module Standard) specification and is widely used in high-speed networks and telecommunication systems. These modules support various protocols such as Ethernet and Optical Transport Network (OTN) and can be easily integrated into a wide range of network environments. With its advanced optoelectronic technology, the 40G CFP module ensures efficient and stable data transmission over optical fiber. It also supports a variety of connectors, including LC and MPO/MTP, for easy interfacing with existing infrastructure.
The Difference Between 40G CFP vs. QSFP+ Transceivers
While both 40G CFP and 40G QSFP+ transceivers are capable of high-speed data transmission, they differ significantly in different aspects.
Cost and Density
40G QSFP+ transceivers are particularly suited to high-density network environments because of their more compact design and relatively low cost. In contrast, 40G CFP modules are larger and more costly, with a focus on extreme transmission speeds. In terms of port density, QSFP+ modules support more ports per square inch and are suitable for applications seeking high density and low cost. Which module to choose often depends on the needs of the network, as well as considerations of cost-effectiveness and space utilization.
Power Consumption and Speed
40G QSFP+ modules excel in reducing power consumption for applications that value energy efficiency and sustainability. 40G CFP modules, on the other hand, are highlighted by their extremely high data transfer speeds, capable of supporting rates of up to 100 Gbps. This difference means that CFP modules are a better choice if data transfer rates are the main focus of the network, while QSFP+ modules are more appropriate if energy efficiency is a priority.
Practical Application Scenarios
Due to differences in form factor, cost, and compatibility, there are different practical scenarios for 40G CFP and QSFP+ transceivers.
Applications for 40G QSFP+ Transceivers
40G QSFP+ transceivers are commonly used in the following applications due to their high port density and low power consumption:
Data centers: Due to its high port density and energy-saving features, 40G QSFP+ is widely used for short-distance data center interconnections.
High Performance Computing Networks (HPC): In HPC environments, the high bandwidth and low latency performance provided by QSFP+ modules meet the stringent requirements for high-speed data transmission.
Enterprise Core Networks: The cost-effectiveness and high transmission rates of QSFP+ modules make them ideal for core network connectivity in large enterprises.
40G CFP Module Applications
40G CFP transceivers, on the other hand, are mostly used in those applications where high-speed data transmission is highly demanded. They are particularly suitable for the following applications:
Telecommunication networks: 40G CFP modules are an important part of telecommunication networks due to their excellent high-speed and long-distance transmission capabilities.
ISP Networks: Internet Service Providers (ISPs) use 40G CFP modules in their networks to take advantage of their ultra-high transmission rates and extensive protocol support.
Metropolitan Area Networks (MANs): In MANs, the long-haul advantage of 40G CFP makes it useful for transmitting data across cities or over long distances.
Conclusion
Whether it is 40G QSFP+ transceivers or 40G CFP modules, they each have different advantages and features for different network requirements. Which module to choose ultimately depends on the specific requirements of the network. By understanding the different types of these modules and their applications, you can make a more informed choice based on actual needs to ensure an efficient and stable network. As technology continues to advance, keeping up with industry developments will help you maximize the use of these advanced technologies.
